Sucker Rod with Various Grades and Specs

Introduction

Sucker rod is the common equipment in the oil extraction. It is manufactured through many process including the testing, straightening and forging. The sucker rod is placed between the polished rod and oil well pump. To deliver power. Sucker rod is manufactured from high quality carbon steel and alloy steel, which is conform to the API Spec 11B standard. Sucker rod has various types including the common sucker rod, hollow sucker rod and FRP sucker rod. Commonly we use the sucker rod coupling to connect the sucker rod. The sucker rod also has various specs to fit different environments and applications.

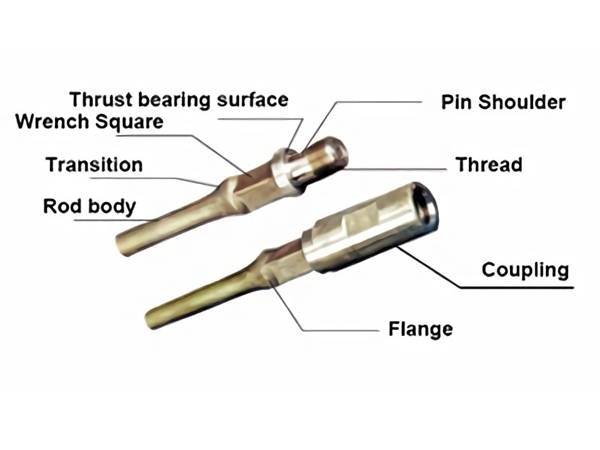

One piece of sucker rod and one pieces of sucker rod with coupling with explanation on it.

Explanation of the sucker rod.

Classification

The sucker rod has various types:

  • Common sucker rod
    • Grade C sucker rod.
    • Grade D sucker rod.
    • Grade K sucker rod.
    • Grade KD sucker rod.
  • High tensile sucker rod: grade H sucker rod
    • Grade HY sucker rod.
    • Grade HL sucker rod.
    • Grade KHL sucker rod.
  • Special sucker rod: hollow sucker rod
  • Continuous sucker rod.
  • Screw pump sucker rod
    • Taper thread sucker rod
    • Plug sucker rod.
  • FRP sucker rod: fiber reinforced plastic sucker rod
  • Flexible sucker rod
    • Carbon fiber composite sucker rod
    • Steel wire rope sucker rod.
  • Electric sucker rod
Mechanical sheet of the different grade sucker rod
Item Grade Tensile strength MPa Yield strength MPa Percentage elongation % Contraction percentage of area %
ESRM-01 C 620 - 795 ≥ 415 ≥ 13 ≥ 50
ESRM-02 K 620 - 795 ≥ 415 ≥ 13 ≥ 60
ESRM-03 D 795 - 965 ≥ 590 ≥ 10 ≥ 50
ESRM-04 KD 795 - 965 ≥ 590 ≥ 10 ≥ 50
ESRM-05 HL 965 - 1195 ≥ 795 ≥ 10 ≥ 45
ESRM-06 HY 965 - 1195 N/M N/M N/M

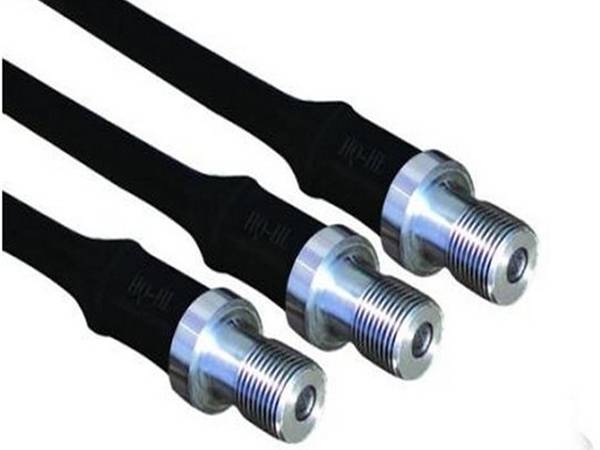

Three pieces of Grade H sucker rod on the white background.

Grade H sucker rod is the extra high tensile sucker rod.

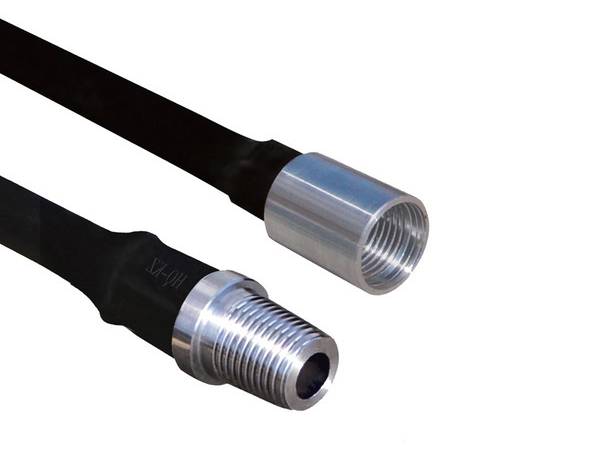

Two different type of hollow sucker rod on the white background.

Hollow sucker rod is a special structure of the sucker rod.

Specification

  • Material: high quality carbon steel or alloy steel.
  • Grade: C, D, K, H.
  • Rod diameter: 5/8", 3/4", 7/8", 1" and 1-1/4".
  • Length:
    • 25', 26' and 30' for sucker rod.
    • 2', 4', 6', 8', 10' for pony rod.
Item Size Rod D. Thread D. Length O.D. of pin shoulder Length of pin Wrench square size
Length width
ESRS-01 5/8" 5/8" 5/8" 2' / 4' / 6' / 8' / 10' / 25' / 30' 31.75mm 31.75mm ≥ 31.75mm 22.23mm
ESRS-02 3/4" 3/4" 3/4" 38.10mm 36.51mm ≥ 31.75mm 25.40mm
ESRS-03 7/8" 7/8" 7/8" 41.28mm 41.28mm ≥ 31.75mm 25.40mm
ESRS-04 1" 1" 1" 50.80mm 47.63mm ≥ 38.10mm 33.34mm
ESRS-05 1-1/8" 1-1/8" 1-1/8" 57.15mm 53.98mm ≥ 41.28mm 38.10mm

Production

  • For common sucker rod:
    Raw Material Test → Cold Straighten → Cut → Forge → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Assembly → Protective Cap → Package → Aczoiling Treatment.
  • For extra high tensile sucker rod:
    Raw Material Test → Cold Straighten → Cut → Forge → Quenched And Tempered → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Surface Quenched → Assembly → Protective Cap → Package → Aczoiling Treatment.

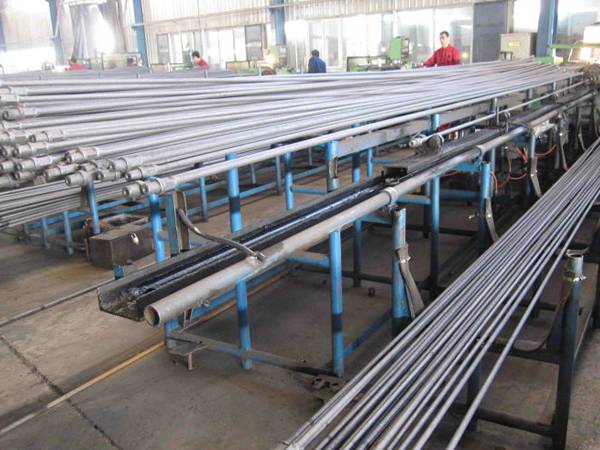

The sucker rod is in the process of shot blasting.

Shot blasting.

Several workers are packing the sucker rod.

Packing.

Package and loading

  • Package:
    • Metal pallet for saving space and convenient to transport.
    • Plastic paper covering the sucker rod and metal box covering the rod head and then metal pallet for better corrosion and abrasion resistance.
  • Pallet size (L × W× H):
    • 7930mm × 550mm × 330mm
    • 8300mm × 550mm × 330mm
    • 9440mm × 550mm × 330mm
  • Container size:
    • 40' GP (40' general purpose container).
    • 40' OT (40' open top container).
Item Dimension Length Ft. Pieces/ bundle Net weight KG Gross weight KG Total pieces
ESRP-01 5/8" 25' 150 1930 1938 1920
ESRP-02 26' 150 1945 1953 1920
ESRP-03 30' 150 2210 2218 1690
ESRP-04 3/4" 25' 100 1850 1858 1345
ESRP-05 26' 100 1865 1873 1334
ESRP-06 30' 100 2120 2128 1174
ESRP-07 7/8" 25' 80 1920 1925 1039
ESRP-08 26' 80 2012 2017 991
ESRP-09 30' 80 2290 2290 897
ESRP-10 1" 25' 60 1915 1923 780
ESRP-11 26' 60 2006 2014 744
ESRP-12 30' 60 2278 2283 657
ESRP-13 1-1/8" 25' 50 2044 2052 609
ESRP-14 26' 50 2135 2143 583
ESRP-15 30' 50 2392 2398 521f
Item Dimension Length Ft. Pieces/ bundle Net weight KG Gross weight KG Total pieces
ESRP-01 5/8" 25' 150 1930 1938 1920
ESRP-02 26' 150 1945 1953 1920
ESRP-03 30' 150 2210 2218 1690
ESRP-04 3/4" 25' 100 1850 1858 1345
ESRP-05 26' 100 1865 1873 1334
ESRP-06 30' 100 2120 2128 1174
ESRP-07 7/8" 25' 80 1920 1925 1039
ESRP-08 26' 80 2012 2017 991
ESRP-09 30' 80 2290 2290 897
ESRP-10 1" 25' 60 1915 1923 780
ESRP-11 26' 60 2006 2014 744
ESRP-12 30' 60 2278 2283 657
ESRP-13 1-1/8" 25' 50 2044 2052 609
ESRP-14 26' 50 2135 2143 583
ESRP-15 30' 50 2392 2398 521

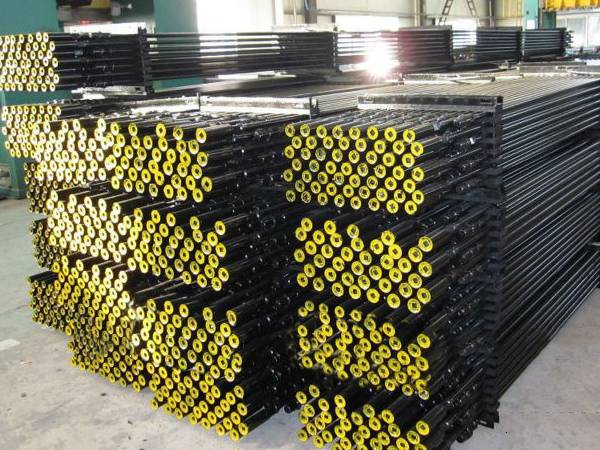

Several bundle sucker rod packaged by the angle steel and bolts are placed on the ground.

Sucker rods are packaged by the metal pallet.

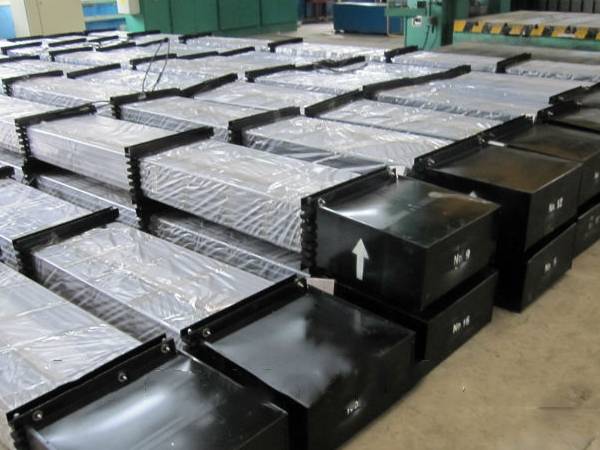

Several pallets sucker rod on the ground with plastic paper covering the rod body and metal box covering the rod head.

Sucker rod in plastic paper, metal box, angle steel and bolts package.

Features

  • Various grade to fit different requirements.
  • Various types to satisfy different environments.
  • Angle steel and bolts package for convenient transport and saving space.
  • Plastic or metal sucker rod protectors to protect the threads.
  • Plastic paper and metal box to resist the corrosion and abrasion.
  • Special specifications can be customized.
Two bundle of sucker rod with plastic cap on the rod head.

Plastic cap can protect the thread.

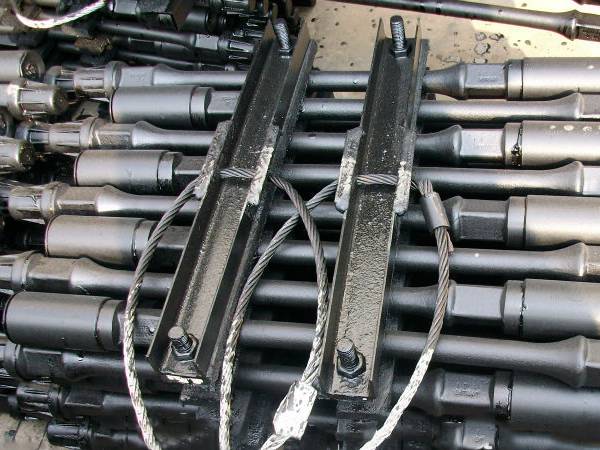

A bundle of sucker rod is packaged by the angle steel and bolts.

Angle steel and bolts package for saving space and convenient transport.

Applications

The sucker rod is widely used in the oil extraction industries. The different grade sucker rod can be applied in different applications.

  • Grade C sucker rod: Moderate strength, has a certain degree of resistance to the sulfide stress cracking, it is suitable for sour environments.
  • Grade D sucker rod: The grade D sucker rod is manufactured from high quality heat treated steel alloy, which has high tensile and yield strength, it is can be used in the non-corroding or mildly corroding environments.
  • Grade K sucker rod: The grade K sucker rod has a good corrosion resistance in H2S, CO2, and NaCl media, it is widely used in corrosion environments.
  • Grade H sucker rod: This is a type of sucker rod with extra high tensile strength it is ideal for deep and large wells.
